DWDM SFP Optical Transceiver
Name:

DWDM SFP Optical Transceiver

Class:
Optical Transceiver
Type:
DWDM SFP Optical Transceiver

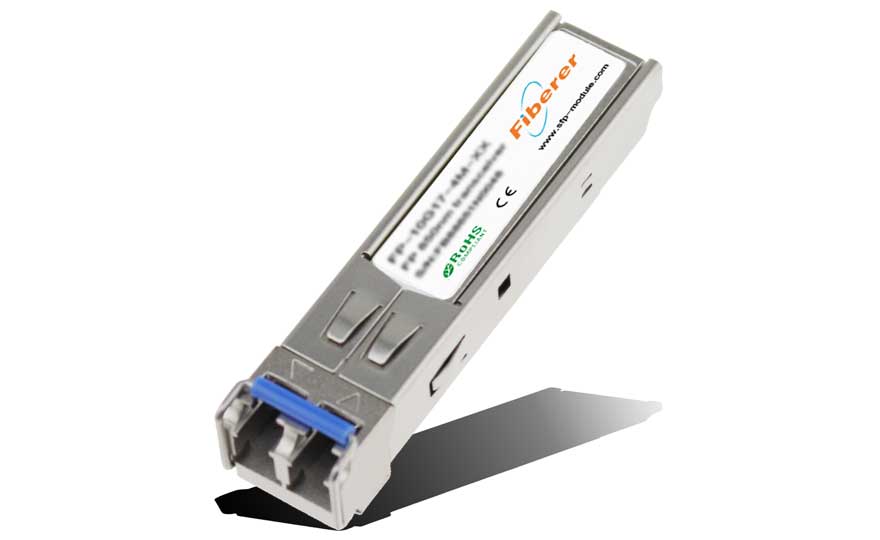

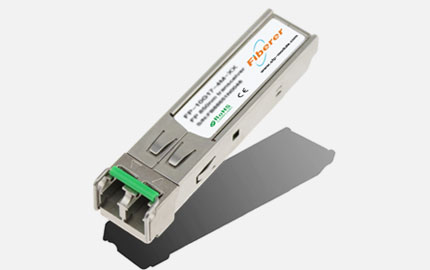

DWDM SFP Optical Transceiver Specification


Fiberer Rohs

Description

Fiberer DWDM SFP Transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for DWDM SONET/ SDH, Gigabit Ethernet and FiberChannel applications. The transceiver consists of two sections: The transmitter section incorporates a colded DFB laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Fiberer DWDM SFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage, laser temperature and TEC current.




Features (DWDM 2.67G SFP GPD-XX48-12CD)

DWDM SFP Optical Transceiver

▪ Wavelength selectable to C-band ITU-T grid wavelengths

▪ Suitable for use in 100GHz channel spacing DWDM systems

▪ DWDM SFP MSA Compliant

▪ Up to 2.67Gb/s data rate

▪ OC48 Long Reach 120km

▪ Cold Start up Wavelength Compliance

▪ Low Power Dissipation <1.3W Maximum

▪ -5ºC to 70ºC Operating Case Temperature

▪ Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power, laser temperature and TEC current

▪ Extended link budget with APD receiver technology

▪ RoHS compliant and lead free




Applications

▪ SFP Transceivers for DWDM SONET/ SDH

▪ Ethernet IEEE 802.3ae

▪ Fiber Channel




Ordering information



Datasheet Download Data Rate Distance LD PD DDMI
FPD-xx24-08C(D) 1.25Gbps 80km cooled DFB APD Y
FPD-xx24-12C(D) 1.25Gbps 120km cooled DFB APD Y
FPD-xx48-08C(D) 2.488Gbps 80km cooled DFB APD Y
FPD-xx48-12C(D) 2.488Gbps 120km cooled DFB APD Y









Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.


Quality Assurance:  assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and invoice,match the safety of international business law.)    Customer Reviews
