Product Show

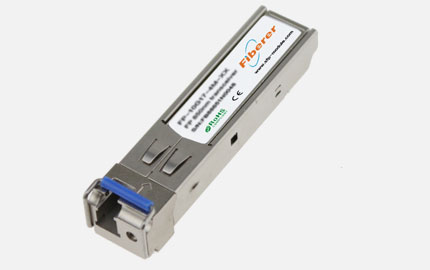

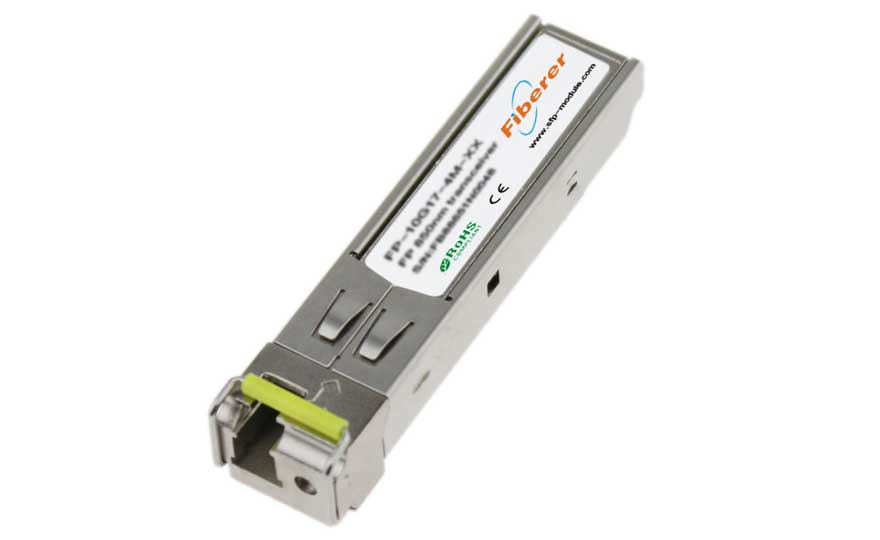

BiDi SFP Optical Transceiver
Name:

BiDi SFP Optical Transceiver

Class:
Optical Transceiver
Type:
BiDi SFP Optical Transceiver

BiDi SFP Optical Transceiver Specification


Fiberer Rohs

Description

The SFP-BIDI transceivers are high performance, cost effective modules supporting data-rate of 155Mbps and 120km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.




Features

BiDi SFP Optical Transceiver

▪ Up to 155Mbps data-rate

▪ 1550nm DFB laser and PIN photodetector for 120km transmission

▪ Compliant with SFP MSA and SFF-8472 with simplex LC receptacle

▪ Digital Diagnostic Monitoring: Internal Calibration or External Calibration

▪ Compatible with RoHS

▪ +3.3V single power supply

▪ Operating case temperature: Standard: 0 to +70°C




Applications

▪ SDH STM-1, S-1.1,L-1.1, L-1.2

▪ SONET OC-3 IR1,LR1,LR2

Other optical links




Ordering information



Datasheet Download

Data Rate Distance LD PD DDMI
FPB-3503x-L2x(D) 155Mbps 20km 1310nm FP 1550nm PIN N(Y)
FPB-5303x-L2x(D) 155Mbps 20km 1550nm FP 1310nm PIN N(Y)
FPB-3403x-L2x(D) 155Mbps 20km 1310nm FP 1490nm PIN N(Y)
FPB-4303x-L2x(D) 155Mbps 20km 1490nm FP 1310nm PIN N(Y)
FPB-3503x-L4x(D) 155Mbps 40km 1310nm FP 1550nm PIN N(Y)
FPB-5303x-L4x(D) 155Mbps 40km 1550nm DFB 1310nm PIN N(Y)
FPB-3403x-L4x(D) 155Mbps 40km 1310nm FP 1490nm PIN N(Y)
FPB-4303x-L4x(D) 155Mbps 40km 1490nm DFB 1310nm PIN N(Y)
FPB-4503x-L8C(D) 155Mbps 80km 1490nm DFB 1550nm PIN N(Y)
FPB-5403x-L8C(D) 155Mbps 80km 1550nm DFB 1490nm PIN N(Y)
FPB-4503x-12C(D) 155Mbps 120km 1490nm DFB 1550nm PIN N(Y)
FPB-5403x-12C(D) 155Mbps 120km 1550nm DFB 1490nm PIN N(Y)
FPB-3524x-02x(D) 1.25Gbps 2km 1310nm FP 1550nm PIN N(Y)
FPB-5324x-02x(D) 1.25Gbps 2km 1550nm FP 1310nm PIN N(Y)
FPB-3524x-L2x(D) 1.25Gbps 20km 1310nm FP 1550nm PIN N(Y)
FPB-5324x-L2x(D) 1.25Gbps 20km 1550nm DFB 1310nm PIN N(Y)
FPB-3424x-L2x(D) 1.25Gbps 20km 1310nm FP 1490nm PIN N(Y)
FPB-4324x-L2x(D) 1.25Gbps 20km 1490nm DFB 1310nm PIN N(Y)
FPB-3524x-L4x(D) 1.25Gbps 40km 1310nm DFB 1550nm PIN N(Y)
FPB-5324x-L4x(D) 1.25Gbps 40km 1550nm DFB 1310nm PIN N(Y)
FPB-3424x-L4x(D) 1.25Gbps 40km 1310nm DFB 1490nm PIN N(Y)
FPB-4324x-L4x(D) 1.25Gbps 40km 1490nm DFB 1310nm PIN N(Y)
FPB-4524L-L8C(D) 1.25Gbps 80KM 1490nm DFB 1550nm PIN N(Y)
FPB-5424L-L8C(D) 1.25Gbps 80KM 1550nm DFB 1490nm PIN N(Y)
FPB-4524L-12C(D) 1.25Gbps 120km 1490nm DFB 1550nm APD Y
FPB-5424L-12C(D) 1.25Gbps 120km 1550nm DFB 1490nm APD Y
FPB-3548x-L2x(D) 2.488Gbps 20km 1310nm DFB 1550nm PIN N(Y)
FPB-5348x-L2x(D) 2.488Gbps 20km 1550nm DFB 1310nm PIN N(Y)
FPB-4548L-L4C(D) 2.488Gbps 40km 1490nm DFB 1550nm PIN N(Y)
FPB-5448L-L4C(D) 2.488Gbps 40km 1550nm DFB 1490nm PIN N(Y)
FPB-4548L-L8C(D) 2.488Gbps 80km 1490nm DFB 1550nm APD Y
FPB-5448L-L8C(D) 2.488Gbps 80km 1550nm DFB 1490nm APD Y
FPB-35M1x-L2x(D  155Mbps to 1.25Gbps 20km 1310nm FP 1550nm PIN N(Y)
FPB-53M1x-L2x(D  155Mbps to 1.25Gbps 20km 1550nm DFB 1310nm PIN N(Y)
FPB-35M1x-L4x(D) 155Mbps to 1.25Gbps 40km 1310nm DFB 1550nm PIN N(Y)
FPB-53M1x-L4x(D) 155Mbps to 1.25Gbps 40km 1550nm DFB 1310nm PIN N(Y)
FPB-35M2x-L2x(D) 155Mbps to 2.67Gbps 20km 1310nm DFB 1550nm PIN N(Y)
FPB-53M2x-L2x(D) 155Mbps to 2.67Gbps 20km 1550nm DFB 1310nm PIN N(Y)
FPB-34M2x-L2x(D) 155Mbps to 2.67Gbps 20km 1310nm DFB 1490nm PIN N(Y)
FPB-43M2x-L2x(D) 155Mbps to 2.67Gbps 20km 1490nm DFB 1310nm PIN N(Y)
FPB-45M2x-L4C(D) 155Mbps to 2.67Gbps 40km 1490nm DFB 1550nm PIN N(Y)
FPB-54M2x-L4C(D) 155Mbps to 2.67Gbps 40km 1550nm DFB 1490nm PIN N(Y)







Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.


Quality Assurance:  assure 100% best quality.
