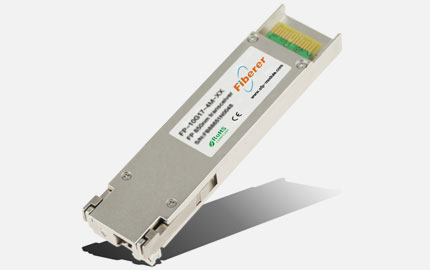

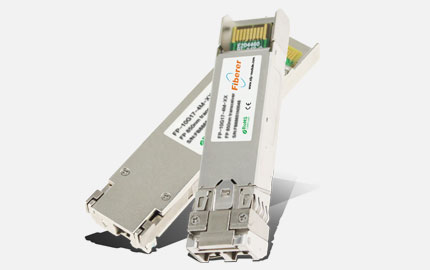

10G DWDM XFP Optical Transceiver
Name:

10G DWDM XFP Optical Transceiver

Class:
Optical Transceiver
Type:
10G DWDM XFP Optical Transceiver

10G DWDM XFP Optical Transceiver Specification


Fiberer Rohs

Description

Fiberer DWDM XFP transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for 10G DWDM SDH, 10GBASE-ER/EW and 10G FiberChannel applications.

The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Fiberer DWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.




Features (FXD-XX192-04C)

10G DWDM XFP Optical Transceiver

 Wavelength selectable to C-band ITU-T grid wavelengths

 Suitable for use in 100GHz channel spacing DWDM systems

 XFP MSA Rev 4.5 Compliant

 Data rate from 9.95Gbps to 11.3Gbps

 No Reference Clock required

 Cooled EML and PIN receiver

 Link length up to 40km

 Low Power Dissipation 3.5W Maximum

 XFI and lineside loopback Mode Supported

 -5ºC to 70ºC Operating Case Temperature

 Diagnostic Performance Monitoring of module temperature, Supply Voltages, laser bias current, transmit optical power, and receive optical power

 RoHS6 compliant (lead free)




Applications

▪ SONET OC-192 & SDH STM 64

 10GBASE ER/EW

 40km 10G Fiber Channel

 DWDM Networks




Ordering information

Datasheet Download Data Rate Distance LD PD DDMI
FXD-XX192-04C 10Gbps 40km DWDM rated EML PIN Y
FXD-XX192- 08C 10Gbps 80KM DWDM-rated EML APD Y
FXD-XX192- 12C 10Gbps 120KM DWDM-rated EML APD Y





Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.


Quality Assurance:  assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and invoice,match the safety of international business law.)    Customer Reviews
