Product Show

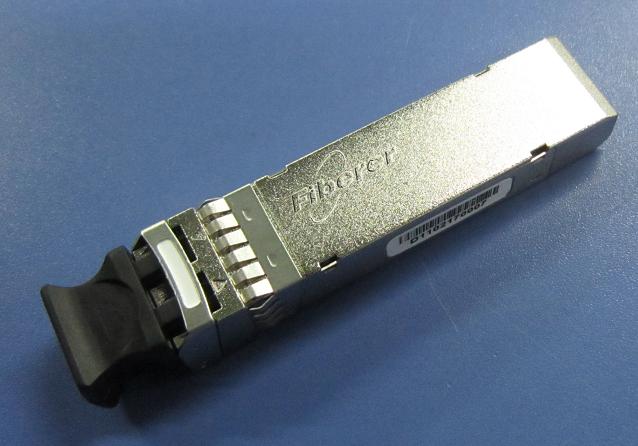

100G Optical Module
Name:

100G Optical Module

Class:
Optical Transceiver
Type:
100G Optical Module

100G Optical Module Specification


Fiberer Rohs
100G Optical Module

100G Optical Module- Features


·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching


100G Optical Module - Applications

·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network)


Fiberer-100G Optical Module, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0×(W)12.6×(H)8.2mm. It is an ideal component for OADM,OXC,system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.



100G Optical Module - Specifications

Parameters

Unit

Fiberer-FSW-1×1

Wavelength Range

nm

850±40 / 1300±40

1260 ~ 1650

Test Wavelength

nm

850 / 1300

1310 / 1550

Insertion Loss 1,2

dB

Typ: 0.5    Max: 0.8

Typ: 0.4    Max: 0.6

Return Loss 1, 2

dB

MM ≥ 30   SM ≥ 50

Crosstalk 1

dB

MM ≥ 65   SM ≥ 70

PDL

dB

≤0.05

WDL

dB

≤0.25

Repeatability

dB

≤±0.02

Operating Voltage

V

3.0  or  5.0

Durability

Cycles

≥ 10 Million

Switching Time

ms

≤8

Optical Power

mW

≤500

Operating Temperature

-20 ~ +70

Storage Temperature

-40 ~ +85

Relative Humidity

%

5 ~ 95

Weight

g

14

Dimension

mm

(L)27.0×(W)12.6×(H)8.2 ±0.2

Note: 1  Within operating temperature and SOP.

2  Excluding Connectors.


100G Optical Module - Pin Configurations

Type

State

Optical Route

Electric Drive

Status Sensor

1×1



Pin 1

Pin 5

Pin 6

Pin 10

Pin 2-3

Pin 3-4

Pin 7-8

Pin 8-9

Latching

A

Light close

--

--

FND

V+

Close

Open

Open

Close

B

P1-P2

V+

FND

--

--

Open

Close

Close

Open

Non-latching

A

Light close

--

--

--

--

Close

Open

Open

Close

B

P1-P2

V+

--

--

FND

Open

Close

Close

Open


100G Optical Module - Optical Route

State A

State B






100G Optical Module - Dimension




100G Optical Module - Electrical Specification

Specifications

Voltage

Current

Resistance

5V latching

4.5~5.5 V

36~44 mA

125 Ω

5V non-latching

4.5~5.5 V

26~32 mA

175 Ω

3V latching

2.7~3.3 V

54~66 mA

50 Ω

3V non-latching

2.7~3.3 V

39~47 mA

70 Ω


100G Optical Module - Ordering Information:  Fiberer-FSW-1×1-A-B-C-D-E-F-G


A

B

C

D

E

F

F

Fiber Type

Operating
Voltage

Switch Type

Test Wavelength

Tube Type

Fiber Length
(Include connector)

Connector

SM: SM, 9/125

M5:MM, 50/125

M6:MM, 62.5/125

X: Others

3: 3V

5: 5V


L: Latching

N: Non-latching

850: 850nm

1310: 1310nm

1550: 1550nm

1310/1550:1310/1550nm

X:Others

25:250um

90:900um

X: Others

05: 0.5m±5cm

10: 1.0m±5cm

15: 1.5m±5cm

X: Others

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

STP: ST/PC

STA: ST/APC

LP: LC/PC

LA: LC/APC

X: Others







Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.


Quality Assurance:  assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and invoice,match the safety of international business law.)    Customer Reviews
